NOVA 10

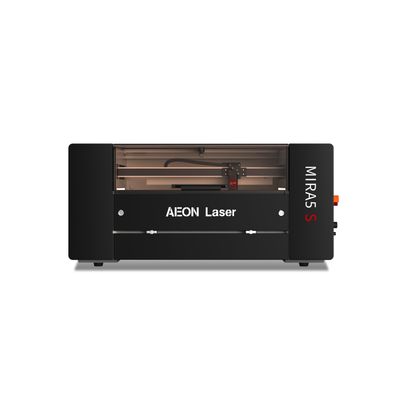

The MIRA S is available in two configurations with various laser powers.

The Elite comes packed with a cutting-edge DC laser source and high-speed hybrid stepper motors, letting you zoom through projects at an impressive 1200mm/s. It's your go-to for smooth, reliable engraving that gets the job done—fast.

But if you’re all about pushing the limits, then the Super is your perfect match. With AC servos and a metal RF-driven laser source, this beast cranks up the speed to a blazing 3500mm/s. It’s engineered for those who want the absolute best in speed, precision, and performance.

So, whether you’re cruising with the Elite or racing ahead with the Super, you're guaranteed an engraving experience that's nothing short of legendary!

• Power Performance - High Speed: 1200 mm/s / 3500mm/s for engraving Acceleration: 5G/8G Material: Wood, glass, paper, leather, textiles, acrylic
• Intelligent Detection and Diagnosis System - The working status of the laser machine can be visualized by the intelligent detection and diagnosis system. Key parameters such as water temperature, current, air pressure, these can be accessed through the panel. Protect yourself and your device at any time.
• Alignment-Free Optical Path Design - Replacing optical accessories quickly (laser tube/mirrors/lens) will not change the optical path.
• All-in-one Design - All the external accessories (air compressor/chiller/air blower) are built-in.
• Multi-Functional Work Table - Both cutting and engraving could be performed on one working table.
• Magnetic Design - Allow for the direct exchange of lenses.
• Fully Enclosed Dust-proof Guide Rail - Fully sealed linear guide protects the guide rail and light path from dust, reduces maintenance frequency.
• High-resolution Lightburn Camera - Positioning your artwork on your workpiece. Import your artwork into LightBurn, and easily position your objects by dragging and dropping them onto the work area image.

• Working Area: 1000mm*700mm
• Machine Dimensions(mm):1500*1210*1125
• Max. Engraving Speed：Elite 1200mm/s, Super 3500mm/s
• Max Acceleration Speed：5G/8G
• Max. lifting capacity：120kg
• Net Weight (N.W)：485Kg
• Package Size：1584*1294*1160mm
• Control & Software:RDWorks & Lightburn Software
• Graphic Format Supported: DSP/PLT/BMP/DXF/AI/DWG

• Honeycomb Table *1
• Accessories Box*1
• Cleaning tools *1
• Network Cable 5M *1
• Data Cable 3M *1
• Hexagon Wrench *1
• Air Exhaust Pipe 5M *1
• Key Switch *2
• Pipe Hoop *2
• USB cable mira camera
• male on both ends *1
• Lens Removal Tool *1
• USB Flash Disk *1
• Funnel *1
• Rail lubricant *1
• MIRA dimming target *1
• Pipe clamp *1
• Ventilation duct flange *1
• Timing belt*1
